Areas of a Roof


The sketches below show most of the areas of a roof that we look at and refer to when we are performing our roof inspections. This is not your typical roof but was drawn this way to show the many various areas that a roof could have. Not all areas shown will be found on all roofs. Click on the sketches below to see a larger image.


Labeled A Roof Area

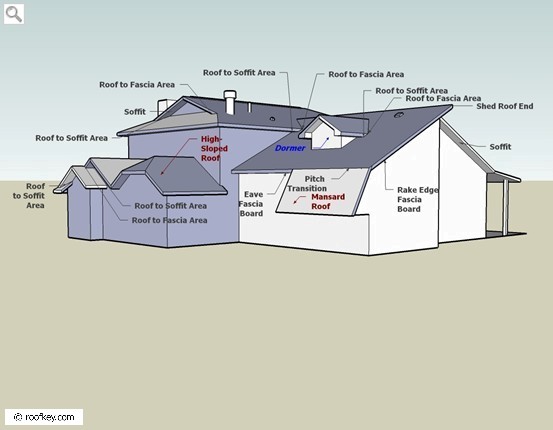

Labeled B Roof Area

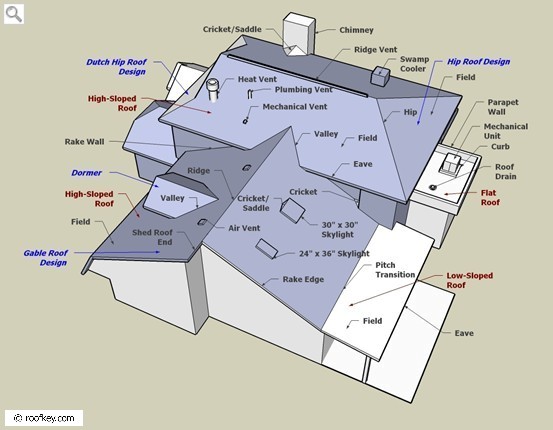

Labeled C Roof Area

Labeled D Roof Area

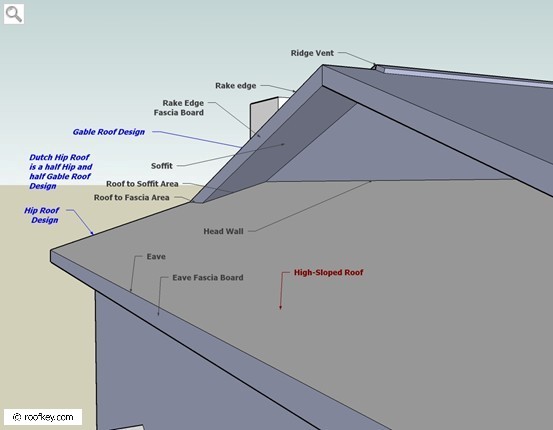

Labeled A Roof Section Area
